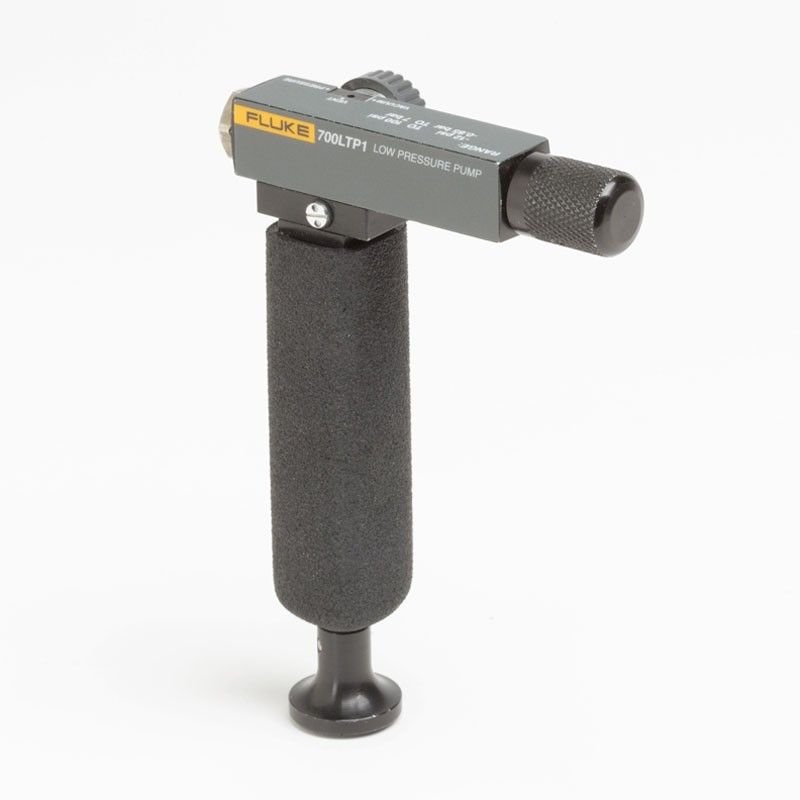

Fluke 700LTP-1 Düşük-Basınç Test Pompası



 The Fluke 700LTP-1 is a hand operated pressure pump designed to generate either vacuum to -13 psi / -.90 bar or pressures to 100 psi / 6.9 bar. The Fluke 700LTP-1 has two pressure ports with quick fit connectors. Test hoses are terminated with 1/4-NPT female fittings that can be adapted using the BSP/ISO adapters.

For use with 700 series pressure modules and 717 pressure calibrators. Ideal for low pressure applications requiring accurate low pressure testing.

•     Pump can be easily cleaned without disassembly.
•     Adjustable pressure relief valve with slow-bleed capability. Allows the slow release pressure at a controlled rate
•     Quick fit connectors, one for the reference port for connection to a Fluke 700 series pressure module and one to connect to a unit under test
•     Slim design, easy to carry and use

Includes:

    (2) adapters to convert the reference and UUT port hose fitting to 1/4" BSP female
    Adapter to convert the reference port hose fitting to 1/4" NPT female for connection to 700 series pressure modules
    One seal kit
    Instruction sheet in English
