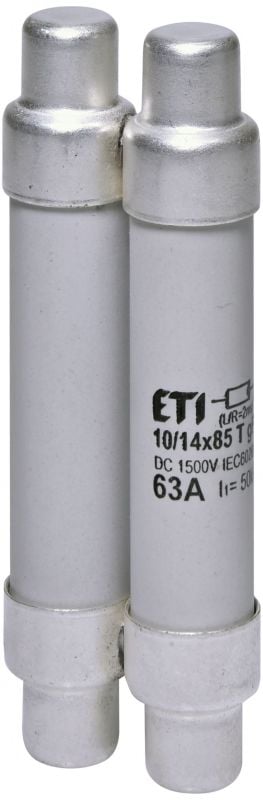

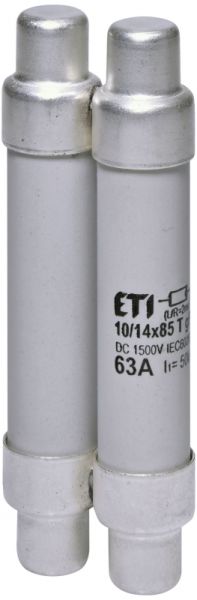

Eti CH 10/14x85 T gPV 63A/1500V

• ETI Code:: 002626241
• Description:: CH 10/14x85 T gPV 63A/1500V
• Class name:: Fuse link
• efuse:: 1
• Type:: CH
• Size:: 10/14x85
• Rated current (A):: 63
• Rated DC voltage (V):: 1500
• Characteristics:: gPV
• L/R (ms):: 2
• Breaking capacity DC (kA):: 50
• Application:: For protection of photovoltaic modules
• Power dissipation (0,7x In) (W):: 5,6
• Power dissipation (W):: 13,7
• Operating joule integral (A2s):: 4.300
• Prearcing joule integral (A2s):: 770
• Standards:: IEC 60269-6, UL 248-19
• UL certificate:: E347771
