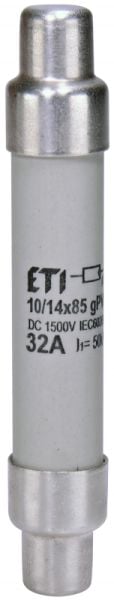

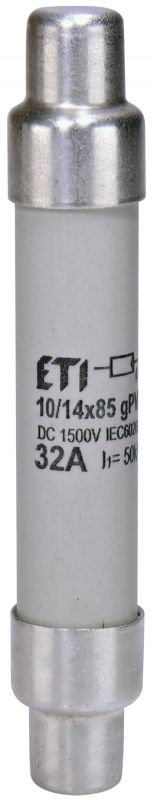

Eti CH10/14x85 gPV 32A/1500V
0,00 TL
- ETI Code:: 002626237
- Description:: CH10/14x85 gPV 32A/1500V
- Class name:: Fuse link
- efuse:: 1
- Type:: CH
- Size:: 10/14x85
- Rated current (A):: 32
- Rated DC voltage (V):: 1500
- Characteristics:: gPV
- L/R (ms):: 2
- Breaking capacity DC (kA):: 50
- Application:: For protection of photovoltaic modules
- Indicator:: Without
- Power dissipation (0,7x In) (W):: 3
- Power dissipation (W):: 7,4
- Operating joule integral (A2s):: 938,7
- Prearcing joule integral (A2s):: 158,5
- Standards:: IEC 60269-6, UL 248-19
- UL certificate:: E347771
