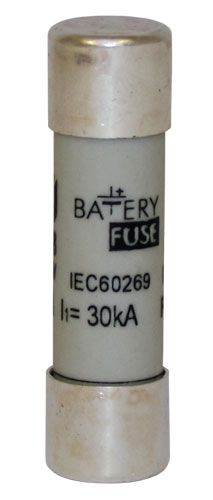

Eti CH10x38 gBat 16A/550V DC

• ETI Code:: 002626016
• Description:: CH10x38 gBat 16A/550V DC
• Class name:: Fuse link
• efuse:: 1
• Rated current (A):: 16
• Type:: CH
• Size:: 10x38
• Characteristics:: gBAT
• Rated DC voltage (V):: 550
• Breaking capacity DC (kA):: 30
• Operating joule integral (A2s):: 88
• L/R (ms):: 10
• Prearcing joule integral (A2s):: 42
• Application:: Battery protection
• Power dissipation (W):: 2,6
• Power dissipation (0,7x In) (W):: 1,1
• Standards:: IEC 60269
