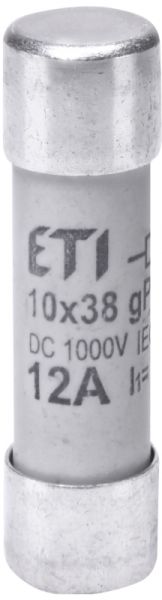

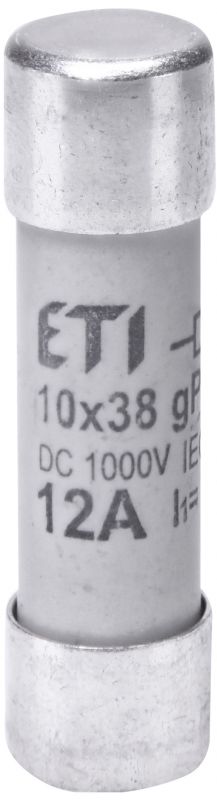

Eti CH10x38 gPV 12A 1000V UL

• ETI Code:: 002625106
• Description:: CH10x38 gPV 12A 1000V UL
• Class name:: Fuse link
• Type:: CH
• Size:: 10x38
• Rated current (A):: 12
• Rated DC voltage (V):: 1000
• Characteristics:: gPV
• L/R (ms):: 2
• Breaking capacity DC (kA):: 10
• Application:: For protection of photovoltaic modules
• Power dissipation (0,7x In) (W):: 0,8
• Power dissipation (W):: 1,9
• Operating joule integral (A2s):: 73
• Prearcing joule integral (A2s):: 22
• Standards:: IEC 60269-6, UL 2579, UL 248-1
• UL certificate:: E347771
