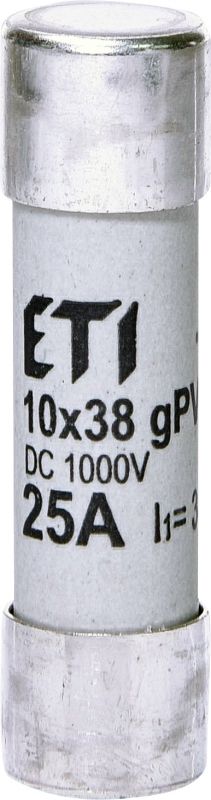

Eti CH10x38 gPV 25A/1000V DC

• ETI Code:: 002625139
• Description:: CH10x38 gPV 25A/1000V DC
• Class name:: Fuse link
• efuse:: 1
• Type:: CH
• Size:: 10x38
• Rated current (A):: 25
• Rated DC voltage (V):: 1000
• Characteristics:: gPV
• L/R (ms):: 2
• Breaking capacity DC (kA):: 30
• Application:: For protection of photovoltaic modules
• Power dissipation (0,7x In) (W):: 1,65
• Power dissipation (W):: 4,1
• Operating joule integral (A2s):: 470
• Prearcing joule integral (A2s):: 110
• Standards:: IEC 60269-6
