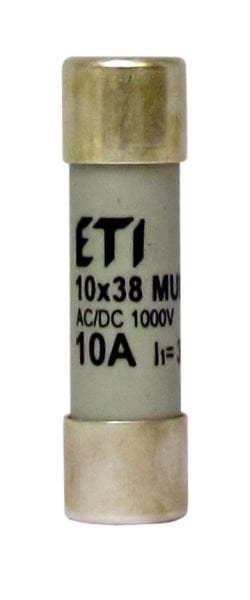

Eti CH10x38 MM 12A/1000V AC/DC

• ETI Code:: 002625405
• Description:: CH10x38 MM 12A/1000V AC/DC
• Class name:: Fuse link
• efuse:: 1
• Type:: CH
• Size:: 10x38
• Rated current (A):: 12
• Rated DC voltage (V):: 1000
• Characteristics:: gR
• Breaking capacity DC (kA):: 30
• Application:: Multimeter fused
• Dimensions:: 10x38
• Power dissipation (W):: 1,7
• Standards:: IEC 60269-4
