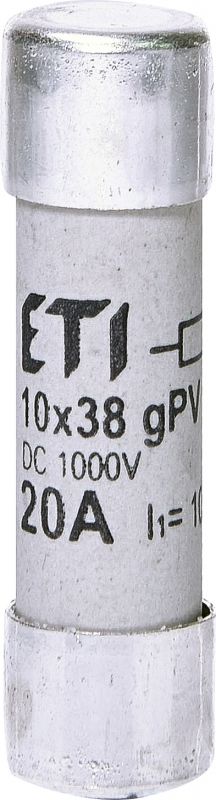

Eti CH10x38gPV 20A 1000V UL

• ETI Code:: 002625108
• Description:: CH10x38gPV 20A 1000V UL
• Class name:: Fuse link
• Type:: CH
• Size:: 10x38
• Rated current (A):: 20
• Rated DC voltage (V):: 1000
• Characteristics:: gPV
• L/R (ms):: 2
• Breaking capacity DC (kA):: 10
• Application:: For protection of photovoltaic modules
• Power dissipation (0,7x In) (W):: 1,3
• Power dissipation (W):: 3,2
• Operating joule integral (A2s):: 245
• Prearcing joule integral (A2s):: 86
• Standards:: IEC 60269-6, UL 2579, UL 248-1
• UL certificate:: E347771
