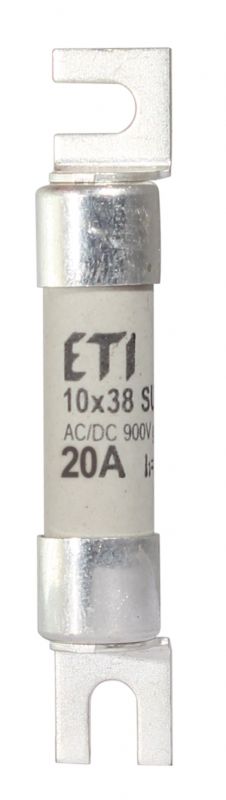

Eti CH10x38SU gR 20A/900V AC/DC

• ETI Code:: 002625317
• Description:: CH10x38SU gR 20A/900V AC/DC
• Class name:: Fuse link
• efuse:: 1
• Designed for:: Protection of PV installations
• Product subgroup:: PV
• Product group:: Special purpose fuses
• L/R (ms):: 2
• Type:: CH SU
• Size:: 10x38
• Rated current (A):: 20
• Rated AC voltage (V):: 900
• Rated DC voltage (V):: 900
• Characteristics:: gR
• Breaking capacity AC (kA):: 50
• Breaking capacity DC (kA):: 8
• Application:: For protection of semiconductor devices
• Power dissipation (0,7x In) (W):: 1,27
• Power dissipation (W):: 3
• Prearcing joule integral (A2s):: 164
• Operating joule integral (A2s):: 387
• Standards:: IEC 60269-4
