- ETI Code:: 002626234

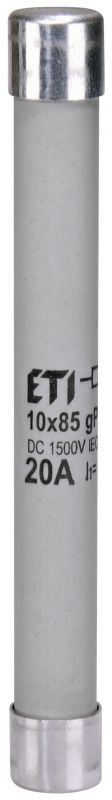

- Description:: CH10x85 gPV 20A/1500V
- Class name:: Fuse link
- efuse:: 1
- Type:: CH
- Size:: 10x85
- Rated current (A):: 20
- Rated DC voltage (V):: 1500
- Characteristics:: gPV
- L/R (ms):: 2
- Breaking capacity DC (kA):: 50
- Application:: For protection of photovoltaic modules
- Power dissipation (0,7x In) (W):: 2
- Power dissipation (W):: 4,8
- Operating joule integral (A2s):: 462,2
- Prearcing joule integral (A2s):: 48,4
- Standards:: IEC 60269-6, UL 248-19
- UL certificate:: E347771
