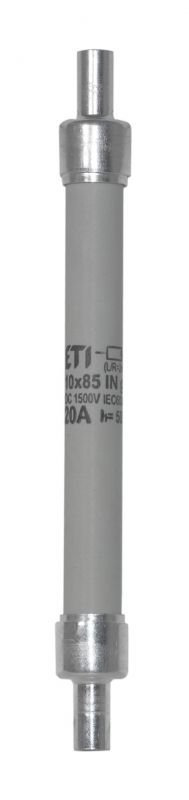

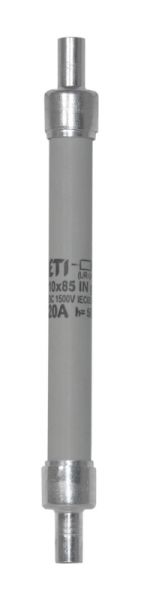

Eti CH10x85 IN gPV 20A/1500V

• ETI Code:: 002626311
• Description:: CH10x85 IN gPV 20A/1500V
• Class name:: Fuse link
• Type:: CH-IN
• Size:: 10x85
• Rated current (A):: 20
• Rated DC voltage (V):: 1500
• Characteristics:: gPV
• L/R (ms):: 2
• Breaking capacity DC (kA):: 50
• Application:: For protection of photovoltaic modules
• Power dissipation (0,7x In) (W):: 2
• Power dissipation (W):: 4,8
• Operating joule integral (A2s):: 462,2
• Prearcing joule integral (A2s):: 48,4
• Standards:: IEC 60269-6
