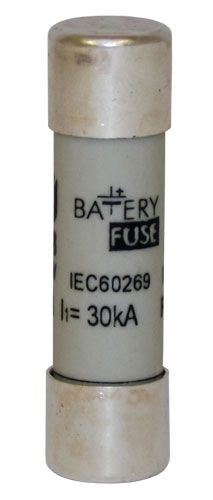

Eti CH14x51 gBat 36A/800V DC

• ETI Code:: 002637412
• Description:: CH14x51 gBat 36A/800V DC
• Class name:: Fuse link
• efuse:: 1
• Rated current (A):: 36
• Type:: CH
• Size:: 14x51
• Characteristics:: gBAT
• Rated DC voltage (V):: 800
• Breaking capacity DC (kA):: 30
• Operating joule integral (A2s):: 1.160
• L/R (ms):: 10
• Prearcing joule integral (A2s):: 370
• Application:: Battery protection
• Power dissipation (W):: 5,6
• Power dissipation (0,7x In) (W):: 2,3
• Standards:: IEC 60269
