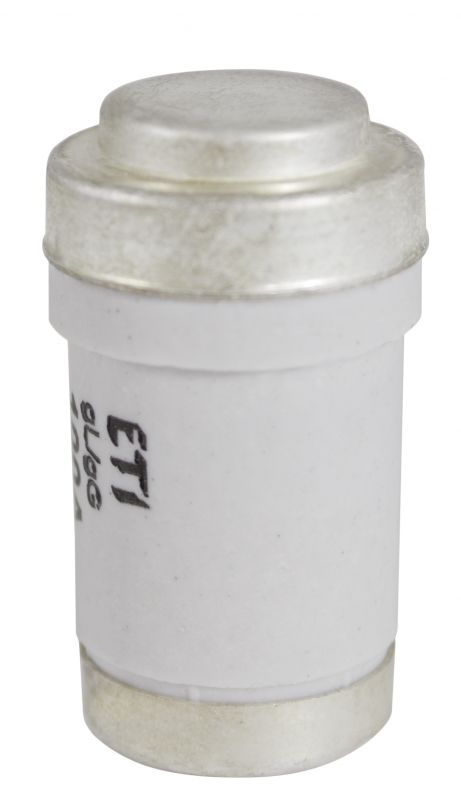

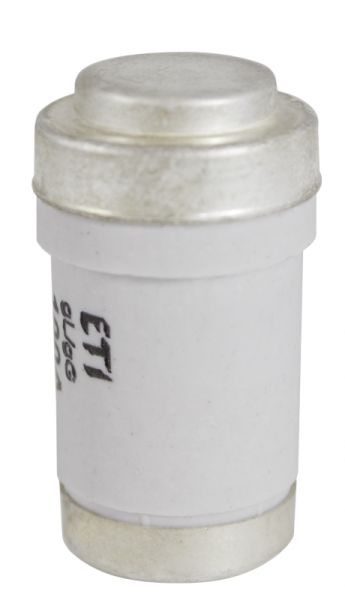

Eti D03 gG 100A/400V

• ETI Code:: 002213002
• Description:: D03 gG 100A/400V
• Class name:: Fuse link
• efuse:: 1
• Rated current (A):: 100
• Size:: D03
• Type:: D0
• Rated AC voltage (V):: 400
• Rated DC voltage (V):: 250
• Characteristics:: gG
• Breaking capacity AC (kA):: 50
• Breaking capacity DC (kA):: 8
• Application:: For cable protection
• Dimensions:: M30X2
• Indicator:: Top fuse status indicator
• Power dissipation (W):: 6,4
• Operating joule integral (A2s):: 60.260
• Prearcing joule integral (A2s):: 22.100
• Standards:: DIN EN 60269-1, DIN EN 60269-3
