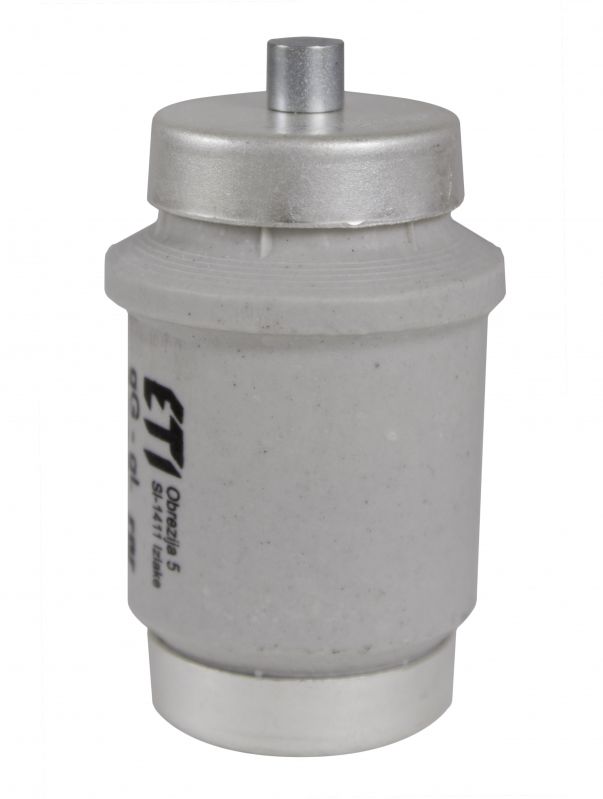

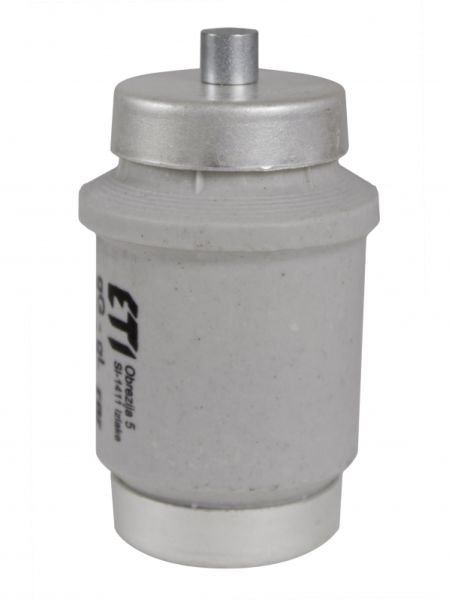

Eti DIV gG 100A/500V

• ETI Code:: 002314402
• Description:: DIV gG 100A/500V
• Class name:: Fuse link
• efuse:: 1
• Type:: D
• Size:: DIV
• Rated current (A):: 100
• Rated AC voltage (V):: 500
• Rated DC voltage (V):: 250
• Characteristics:: gG
• Breaking capacity AC (kA):: 50
• Breaking capacity DC (kA):: 8
• Dimensions:: R1 1/4
• Indicator:: Top fuse status indicator
• Power dissipation (W):: 8,8
• Standards:: DIN EN 60269-1, DIN EN 60269-3
