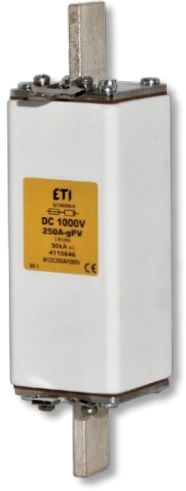

Eti NH1XL gPV 250A/1000V DC

• ETI Code:: 004110646
• Description:: NH1XL gPV 250A/1000V DC
• Class name:: Fuse link
• efuse:: 1
• Type:: NH
• Size:: 1XL
• Rated current (A):: 250
• Rated DC voltage (V):: 1000
• Characteristics:: gPV
• L/R (ms):: 2
• Breaking capacity DC (kA):: 30
• Application:: Fuse link for DC application
• Indicator:: Top fuse status indicator
• Power dissipation (W):: 42
• Power dissipation (0,7x In) (W):: 24
• Operating joule integral (A2s):: 180.000
• Prearcing joule integral (A2s):: 19.000
• Standards:: IEC 60269-6

PDF 1 - Teknik Doküman
PDF 2 - Ürün Çizimi
