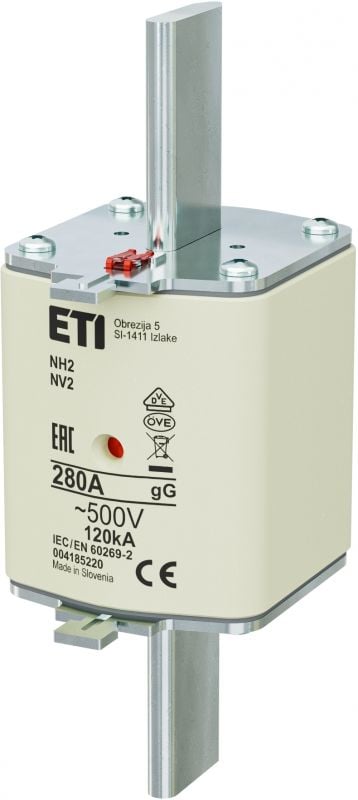

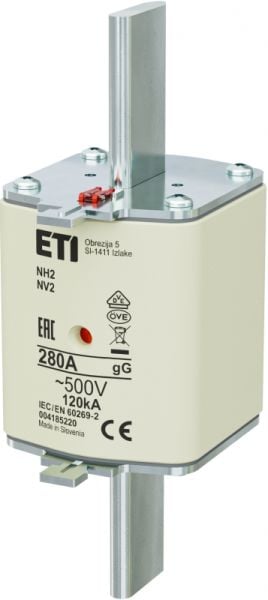

Eti NH2 gG 280A/500V

• ETI Code:: 004185220
• Description:: NH2 gG 280A/500V
• Class name:: Fuse link
• efuse:: 1
• Type:: NH
• Size:: NH2
• Rated current (A):: 280
• Rated AC voltage (V):: 500
• Rated DC voltage (V):: 250
• Characteristics:: gG
• Breaking capacity AC (kA):: 120
• Application:: For cable protection
• Indicator:: Combination fuse status indicator
• Power dissipation (W):: 19,4
• Operating joule integral (A2s):: 965.000
• Prearcing joule integral (A2s):: 217150
• Standards:: IEC 60269-1, IEC 60269-2
