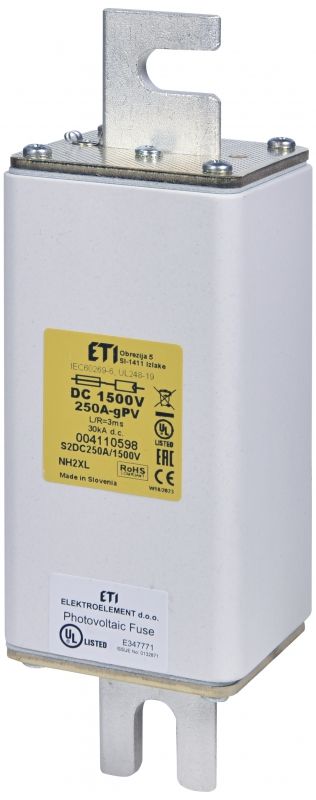

Eti NH2XL gPV 250A/1500V DC UL

• ETI Code:: 004110567
• Description:: NH2XL gPV 250A/1500V DC UL
• Class name:: Fuse link
• efuse:: 1
• Type:: NH
• Size:: 2XL
• Rated current (A):: 250
• Rated DC voltage (V):: 1500
• Characteristics:: gPV
• L/R (ms):: 3
• Breaking capacity DC (kA):: 30
• Application:: Fuse link for DC application
• Indicator:: Top fuse status indicator
• Power dissipation (W):: 44
• Power dissipation (0,7x In) (W):: 19,3
• Operating joule integral (A2s):: 132.000
• Prearcing joule integral (A2s):: 73.000
• Standards:: IEC 60269-6, UL 248-19
• UL certificate:: E347771
