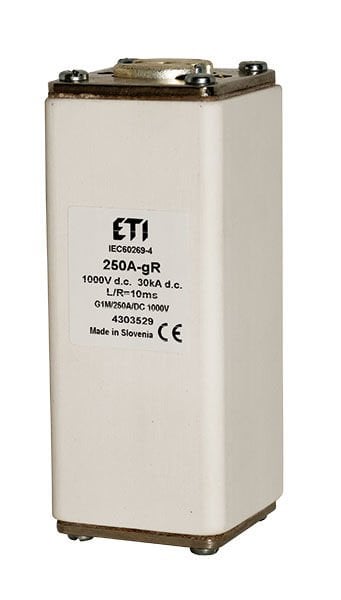

Eti NHG1 gR 250A/1000V DC

• ETI Code:: 004303532
• Description:: NHG1 gR 250A/1000V DC
• Class name:: Fuse link
• efuse:: 1
• Size:: NH1
• Type:: NH-G
• Rated current (A):: 250
• Rated DC voltage (V):: 1000
• Characteristics:: gR
• L/R (ms):: 10
• Breaking capacity DC (kA):: 30
• Application:: Railway inverter protection
• Indicator:: Centre trip indicator for MK+AMK2
• Power dissipation (0,7x In) (W):: 23,6
• Power dissipation (W):: 56
• Operating joule integral (A2s):: 60.000
• Prearcing joule integral (A2s):: 30.000
• Standards:: IEC 60269-4
