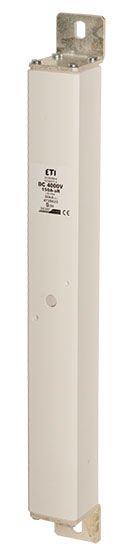

Eti NHS1/394/M aR 150A/4000V DC

• ETI Code:: 004735623
• Description:: NHS1/394/M aR 150A/4000V DC
• Class name:: Fuse link
• efuse:: 1
• Size:: NH1
• Type:: NH-S
• Rated current (A):: 150
• Rated DC voltage (V):: 4000
• Characteristics:: aR
• L/R (ms):: 15
• Breaking capacity DC (kA):: 30
• Application:: Heating system in railway vagon
• Dimensions:: S394mm
• Indicator:: Centre trip indicator for MK
• Power dissipation (W):: 155
• Operating joule integral (A2s):: 31.000
• Prearcing joule integral (A2s):: 3.388
• Standards:: IEC 60269-4 , IEC 60077-5
