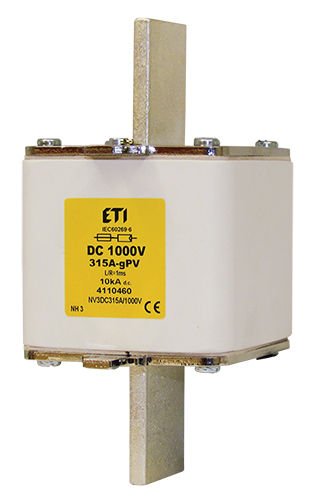

Eti NHS3 gPV 315A/1000V DC

• ETI Code:: 004110294
• Description:: NHS3 gPV 315A/1000V DC
• Class name:: Fuse link
• Type:: NH-S
• Size:: NH3
• Rated current (A):: 315
• Rated DC voltage (V):: 1000
• Characteristics:: gPV
• L/R (ms):: 1
• Breaking capacity DC (kA):: 30
• Application:: Fuse link for DC application
• Dimensions:: S110mm
• Indicator:: Top fuse status indicator
• Power dissipation (W):: 54
• Power dissipation (0,7x In) (W):: 24
• Operating joule integral (A2s):: 80.000
• Prearcing joule integral (A2s):: 40.000
• Standards:: IEC 60269-6
