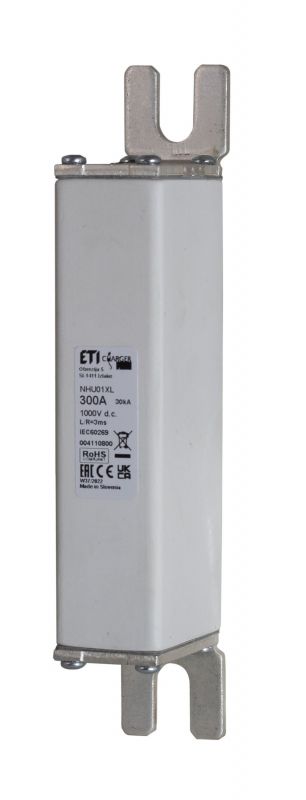

Eti NHU01XL/150 aR 125A/1000V DC

• ETI Code:: 004110813
• Description:: NHU01XL/150 aR 125A/1000V DC
• Class name:: Fuse link
• Application:: For protection on DC side of EV chargers
• Standards:: IEC 60269-4
• Prearcing joule integral (A2s):: 3.300
• Power dissipation (0,7x In) (W):: 12
• Power dissipation (W):: 31
• Operating joule integral (A2s):: 25.000
• L/R (ms):: 3
• Breaking capacity DC (kA):: 30
• Indicator:: Top fuse status indicator
• Type:: NH-U
• Size:: NH01XL
• Rated current (A):: 125
• Rated DC voltage (V):: 1000
• Characteristics:: aR
