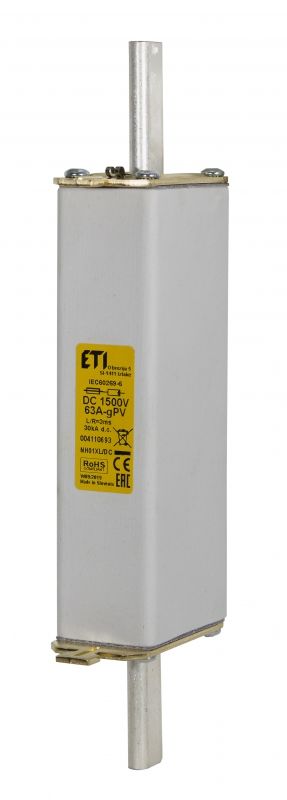

Eti NHU01XL gPV 63A/1500V DC

• ETI Code:: 004110750
• Description:: NHU01XL gPV 63A/1500V DC
• Class name:: Fuse link
• Type:: NH-U
• Size:: 01XL
• Rated current (A):: 63
• Rated DC voltage (V):: 1500
• Characteristics:: gPV
• L/R (ms):: 3
• Breaking capacity DC (kA):: 30
• Application:: Fuse link for DC application
• Dimensions:: U150mm
• Indicator:: Top fuse status indicator
• Power dissipation (W):: 22
• Power dissipation (0,7x In) (W):: 8,5
• Operating joule integral (A2s):: 6.000
• Prearcing joule integral (A2s):: 1.000
• Standards:: IEC 60269-6
