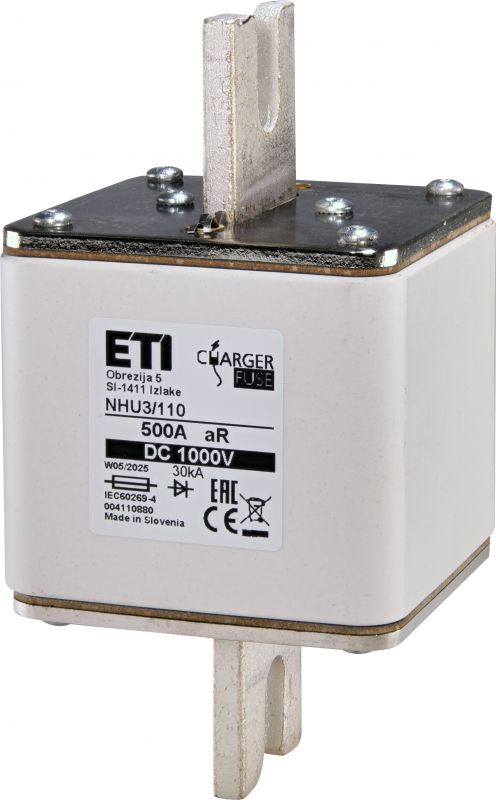

Eti NHU3/110 aR 500A/1000V DC

• ETI Code:: 004110880
• Description:: NHU3/110 aR 500A/1000V DC
• Class name:: Fuse link
• Application:: For protection on DC side of EV chargers
• Standards:: IEC 60269-4
• Prearcing joule integral (A2s):: 50.000
• Power dissipation (0,7x In) (W):: 37,4
• Power dissipation (W):: 109
• Operating joule integral (A2s):: 315.000
• L/R (ms):: 2
• Breaking capacity DC (kA):: 30
• Indicator:: Top fuse status indicator
• Type:: NH-U
• Size:: NH3/110
• Rated current (A):: 500
• Rated DC voltage (V):: 1000
• Characteristics:: aR
