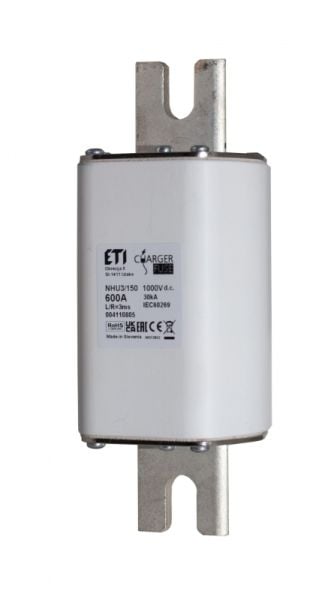

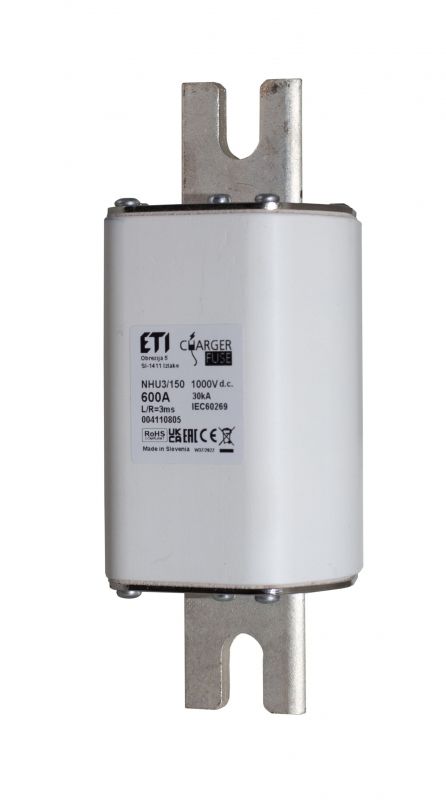

Eti NHU3L/150 gPV 600A/1000V DC

• ETI Code:: 004110805
• Description:: NHU3L/150 gPV 600A/1000V DC
• Class name:: Fuse link
• Application:: For protection on DC side of EV chargers
• Standards:: IEC 60269-6
• Prearcing joule integral (A2s):: 350.000
• Power dissipation (0,7x In) (W):: 32
• Power dissipation (W):: 83
• Operating joule integral (A2s):: 870.000
• L/R (ms):: 3
• Breaking capacity DC (kA):: 30
• Indicator:: Top fuse status indicator
• Type:: NH-U
• Size:: NH3L
• Rated current (A):: 600
• Rated DC voltage (V):: 1000
• Characteristics:: gPV
