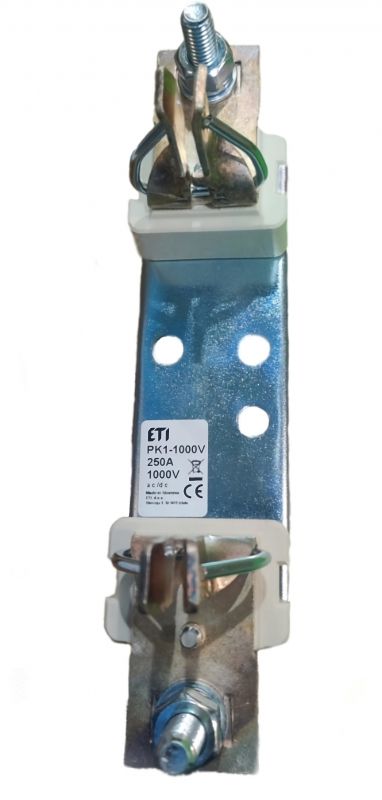

Eti PK 1-100 M10-M10 1p 1000V

• ETI Code:: 004123400
• Description:: PK 1-100 M10-M10 1p 1000V
• Class name:: Fuse - base
• Rated current (A):: 250
• Number of poles:: 1
• Rated Frequency (Hz):: 40-60
• Size:: 1/100
• Rated AC voltage (V):: 1000
• Rated DC voltage (V):: 1000
• Breaking capacity AC (kA):: 200
• Overvoltage Category:: III
• Product group:: LV-fuse base
• Connection:: M10
• Mounting:: Screw mounting
• Ambient temperature (°C):: -25... 55°C
• Conventional free air thermal current with fuse links (A):: 250
• Conventional free air thermal current with solid links (A):: 320
• Rated operating mode:: uninterrupted
• Pollution degree:: 3
• Max. permissable power dissipation per fuse link (W):: 32
• Standards:: IEC60269-2
