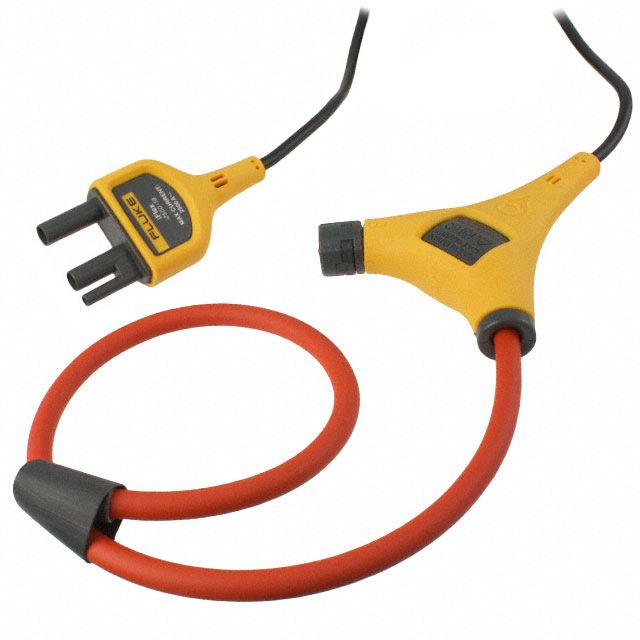

Fluke i2500-18 iFlex Flexible Akım Probu
Fluke i2500-18 iFlex Flexible Akım Probu
|
Teknik Özellikler |
||||
|
i2500-18 and i2500-10 |
Range |
Resolution |
Accuracy |
|
|
AC Current* |
2500 A |
0.1 A |
3% ± 5 digits** |
|
|
Frequency* |
500 Hz |
0.1 Hz |
0.5% ± 5 digits |
|
|
External magnetic |
40 dB |
|||
|
Inrush* |
||||
|
Safety rating |
CAT III 1000 V, CAT IV 600 V |
|||
*When
used with compatible Fluke meter. Accuracy stated includes probe and meter
accuracy.
** For position accuracy at non-optimum positions, see Position sensitivity
specifications table "A
|
Position sensitivity specifications |
|||
|
Distance from optimum |
i2500-10 |
i2500-18 |
Additional iFlex error |
|
A |
0.5 in (12.7 mm) |
1.4 in (35.6 mm) |
± 0.5% |
|
B |
0.8 in (20.3 mm) |
2.0 in (50.8 mm) |
± 1.0% |
|
C |
1.4 in (35.6 mm) |
2.5 in (63.5 mm) |
± 2.0% |
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature
