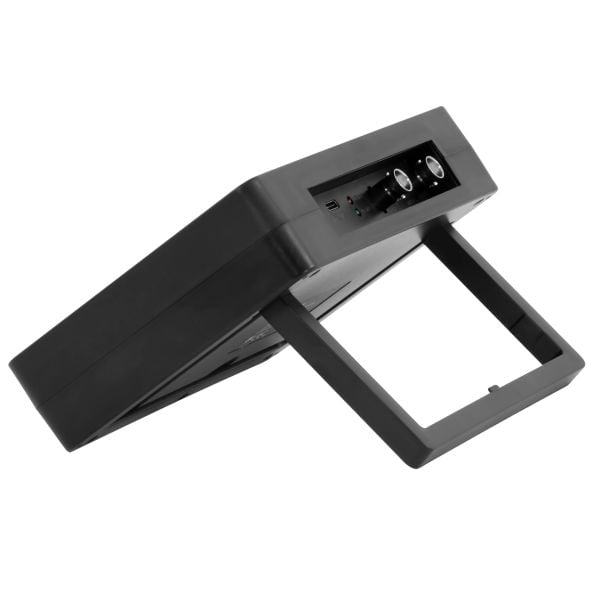

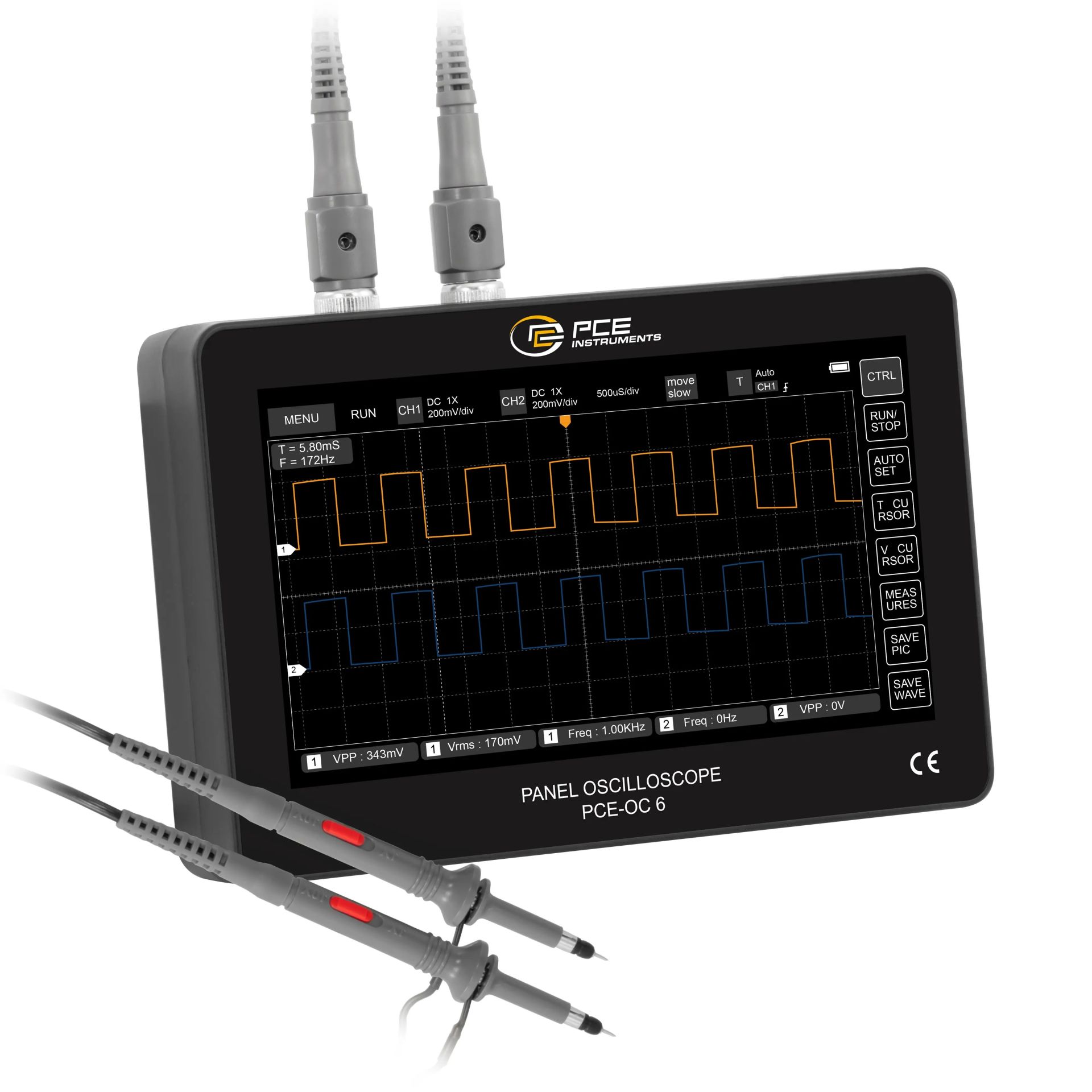

Description

2-channel Oscilloscope / 7-inch touchscreen / 100 MHz bandwidth / 1 GB memory for screenshots / USB-C interface / 1 GSa/s sampling rate / trigger

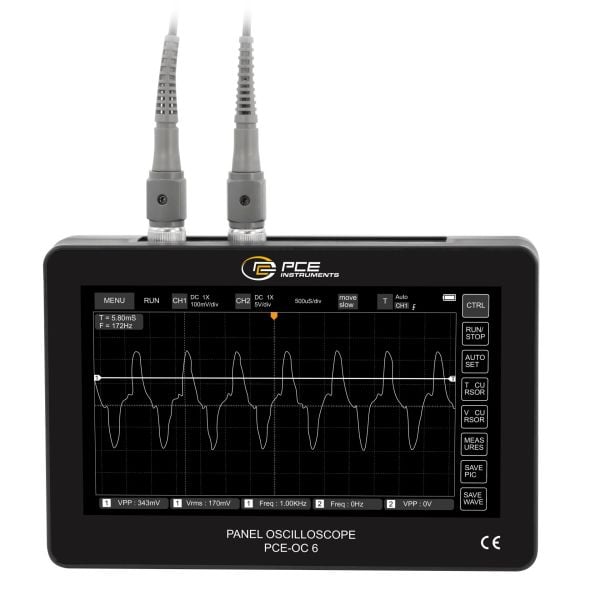

This modern Oscilloscope impresses with a real-time sampling rate of up to 1 GSa/s and an analogue bandwidth of 100 MHz per channel. It is ideal for the precise acquisition of both periodic analogue and aperiodic digital signals. Thanks to the 7-inch colour TFT LCD touchscreen with a resolution of 800 × 480 pixels, the Oscilloscope can be operated intuitively. The slim and lightweight design makes it particularly mobile and flexible to use.

The Oscilloscope offers complete trigger functions (single/normal/automatic) and a practical one-button auto-setup function to quickly adjust signals. An integrated high-voltage protection module ensures safe measurements by tolerating continuous voltages of up to 400 V. The powerful waveform image manager also enables functions such as thumbnail view, detailed view, page turning, zooming and panning. A Lissajous graphic display for amplitude, frequency and phase analysis and an FFT view for analysing harmonics are also available, while a high-performance lithium battery with 6,000 mAh capacity enables up to four hours of continuous operation. This makes the Oscilloscope ideal for mobile use. With an internal 1 GB memory, up to 1000 screenshots and as many sets of waveform data can be saved. The data can be transferred to a computer as a file via the USB-C interface.

The scope of delivery includes two 100 MHz probes and accessories as well as a power supply unit with data cable. This makes the Oscilloscope perfect for analysing and diagnosing signal interference in circuits, power supply units or control units as well as in the development of electronic components.

Özellikler

Highlights

• 2 channel handheld oscilloscope
• 1 GSa/s sampling rate (1X=5 MHz, 10X=100 MHz)
• voltage range: 0 ... 400 V
• trigger adjustable
• screenshot export via USB
• 7-inch TFT LCD touchscreen
• 6000 mAh rechargeable battery

Teknik Özellikler

Specification

Oscilloscope specifications

Number of channels: 2

Bandwidth: 100 MHz

Frequency accuracy: 0,01 %

Sampling rate: 1 GSa/s

Memory depth: 240 kbit

Input impedance: 1 M Ω

Probe factors: 1x, 10x

Max. input voltage: 400 V

Time base: 10 ns ... 50 s

Vertical sensitivity: 50 mV ... 500 V

Rise time: 3 ns

DC gain accuracy: ±2 %

General technical data

Display type: TFT touchscreen

Display size: 7 Inch

Display resolution: 800x480 pixels

Storage medium: Internal memory

Storage capacity: 1 GB

Memory information: screenshot only

Operating time: 4 h

Menu language: English (GB), English

Protection class (device): IP20

Power supply: 5 V DC (power supply unit included)

Connector type: Euro plug

(Rechargeable) battery: 1 x 3,7 V internal , lithium-ion battery

Capacity: 6000 mAh

Operating conditions: 0 ... 50 °C , 0 ... 90 % RH

Storage conditions: 0 ... 50 °C , 0 ... 90 % RH

Dimensions ( L x W x H ): 182 x 121 x 38 mm

Weight: 606 g

Teslimat

Delivery Scope

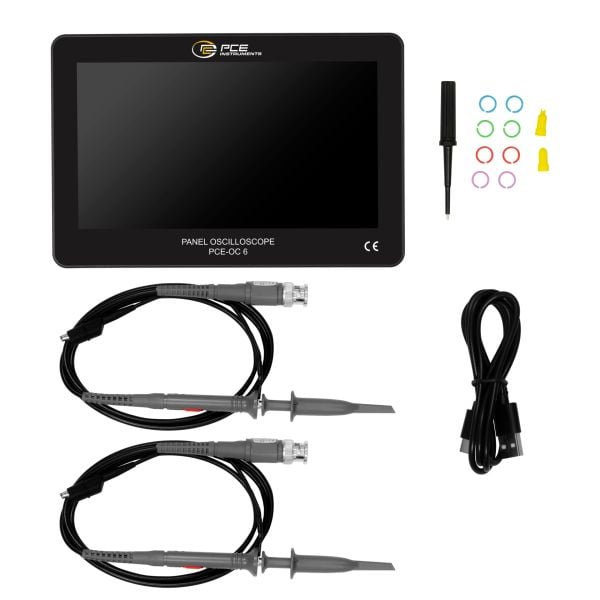

1 x Oscilloscope PCE-OC 6

2 x Oscilloscope probe

2 x probe accessories

1 x USB-C cable

1 x power supply unit 5 V 2 A

1 x instruction manual
