Standard pH electrode CPC-EPS-1 General applications

Standard pH electrode CPC-EPS-1 General applications

Ürün Bilgisi

Description

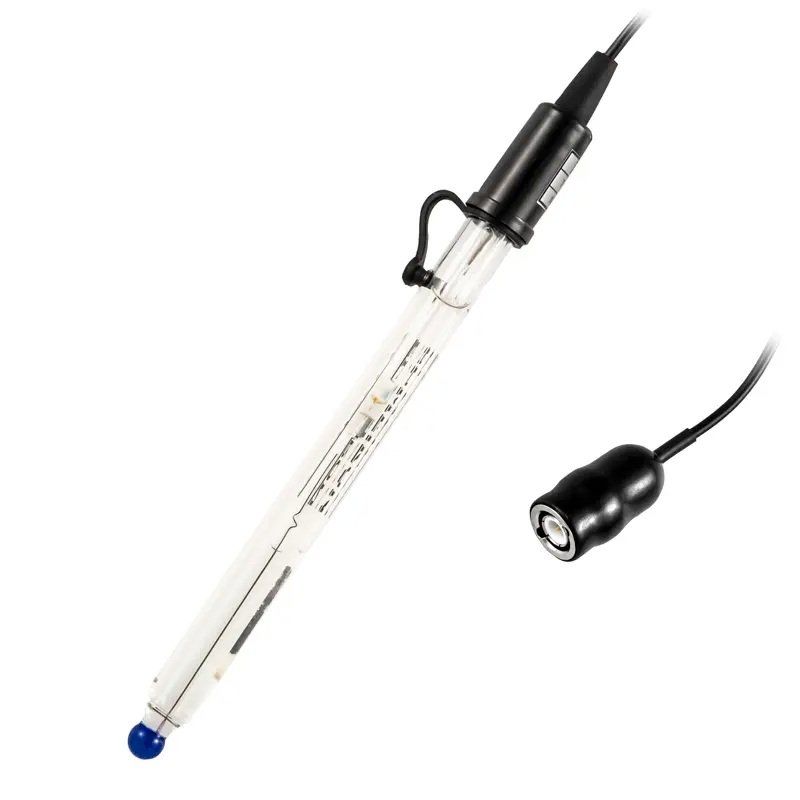

The pH electrode is characterized by a low impedance, a short stabilization time and good linearity at the ends of the measuring range. The electrolyte solution in the pH electrode is a 3 M KCl solution that can be refilled. The pH electrode is equipped with a round glass membrane. The ceramic electrolytic diaphragm (junction) is located above the membrane. The BNC connector allows connection to most available pH meters.

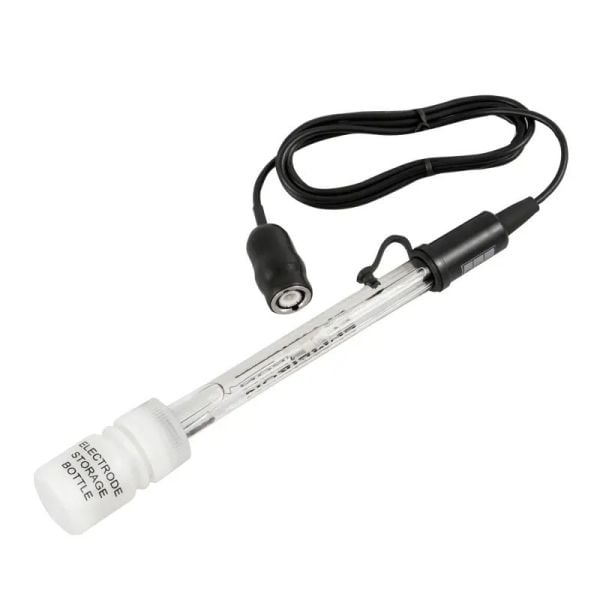

To keep the pH electrode permanently activated, it is provided with a container filled with 3 M KCl, which should be removed before measurements. This solution extends the life of the pH electrode. A special sealing ring protects the pH electrode from electrolyte leakage.

Özellikler

Specification

pH electrode

Measuring range

0 … 14 pH

Temperature

range

0 … 70 °C

Application

General applications

Reference

Ag/AgCl

Electrolyte

3 M KCl

Diaphragm

Ceramic

Tip shape

Ball

Media

non-aggressive media

Shaft / sensor

material

Glass

Shaft / sensor length: 140 mm

Shaft / sensor diameter: 7 mm

Max. Immersion depth: 105 mm

Cable length: 1 m

Connection: BNC

Operating pressure: atmospheric

Weight: 70 g

Teknik Özellikler

Delivery Scope

1 x Standard pH electrode CPC-EPS-1
