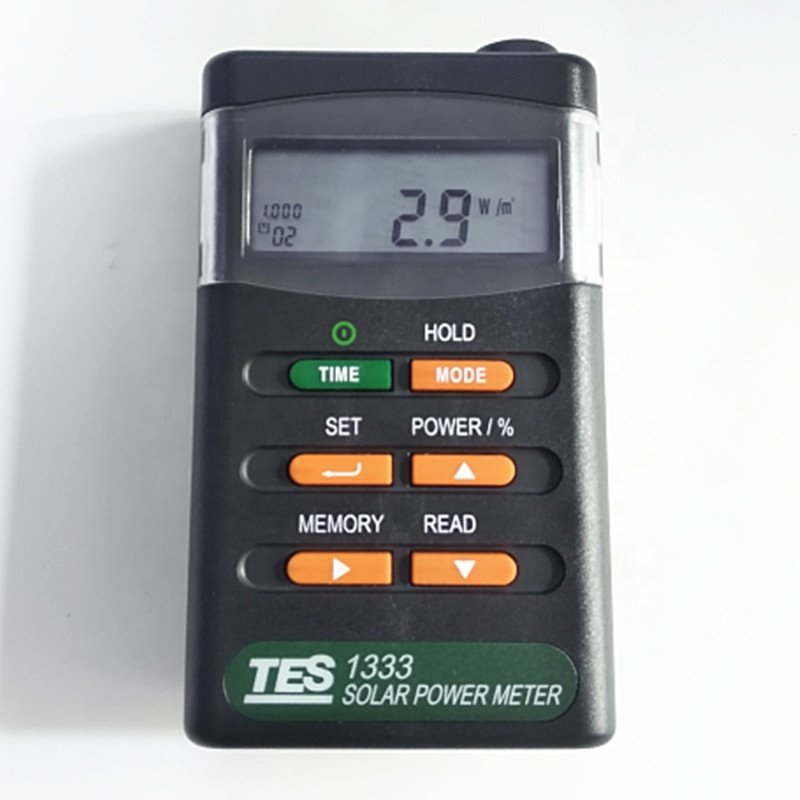

Tes 1333 Solar Güç Ölçer
Ürünün Genel Özellikleri :
- Wide spectral range.
- Excellent long term stability.
- Cosine corrected.
- Automatic transmission measurements.
- Select either power or transmission.
- Solar energy measurement.
- Current time setting function.
- User calibration factor setting function.
- End-mount light sensor.
- Select either W/m2 or Btu / (ft2 x h) units.
- Data Hold/MAX/MIN/AVG modes.
- Data Memory and Read function. (99 sets)
- Auto Data Memory and RS232 interface to PC. (TES-1333R)
|
Display |
LCD display, 4 digit LCD reading |
|
Range |
2000 W/m² 634 Btu / (ft² x h) |
|
Resolution |
0.1 W/m² 0.1 Btu / (ft² x h) |
|
Spectral response |
400-1100nm |
|
Accuracy |
Typically within ±10 W/m² [±3 Btu / (ft² x h)] or ±5%, whichever is greater in sunlight ; Additional temperature induced error ±0.38 W/m²/℃ [±0.12 Btu / (ft² x h)/℃] from 25℃ |
|
Angular accuracy |
Cosine corrected <5% for angles < 60° |
|
Drift |
< ±2% per year |
|
Calibration |
User recalibration available |
|
Over-Input |
Display shows "OL” |
|
Sampling Rate |
4 times/sec |
|
Manu Data Memory and Read |
99 sets |
|
Auto Data Memory |
43000 sets (TES-1333R) |
|
Battery |
4 pcs size AAA |
|
Battery Life |
Approx. 100 hours |
|
Operating Temp and Humidity |
0°C to 50°C (32℉ to 122℉) below 80%RH |
|
Storage Temp and Humidity |
-10°C to 60°C below 70%RH |
|
Weight |
Approx. 158g |
|
Dimension |
110(L) × 64 (W) × 34(H) mm |
|
Accessories Included |
Manual, 4 pcs size AAA, (RS232 Cable, CD software→TES-1333R) |
