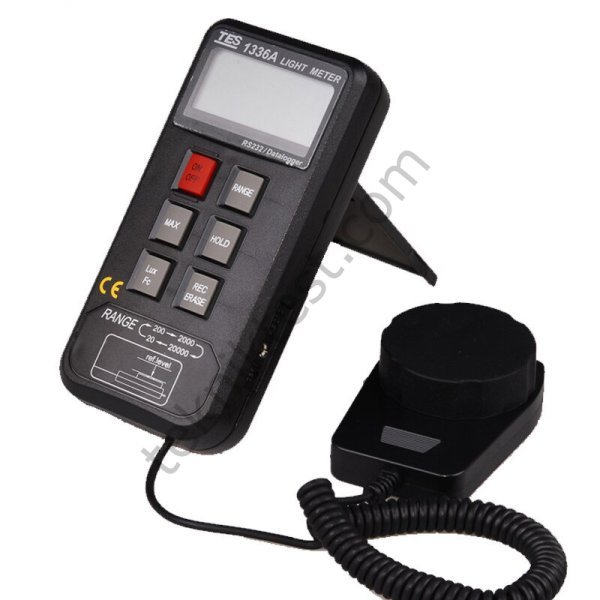

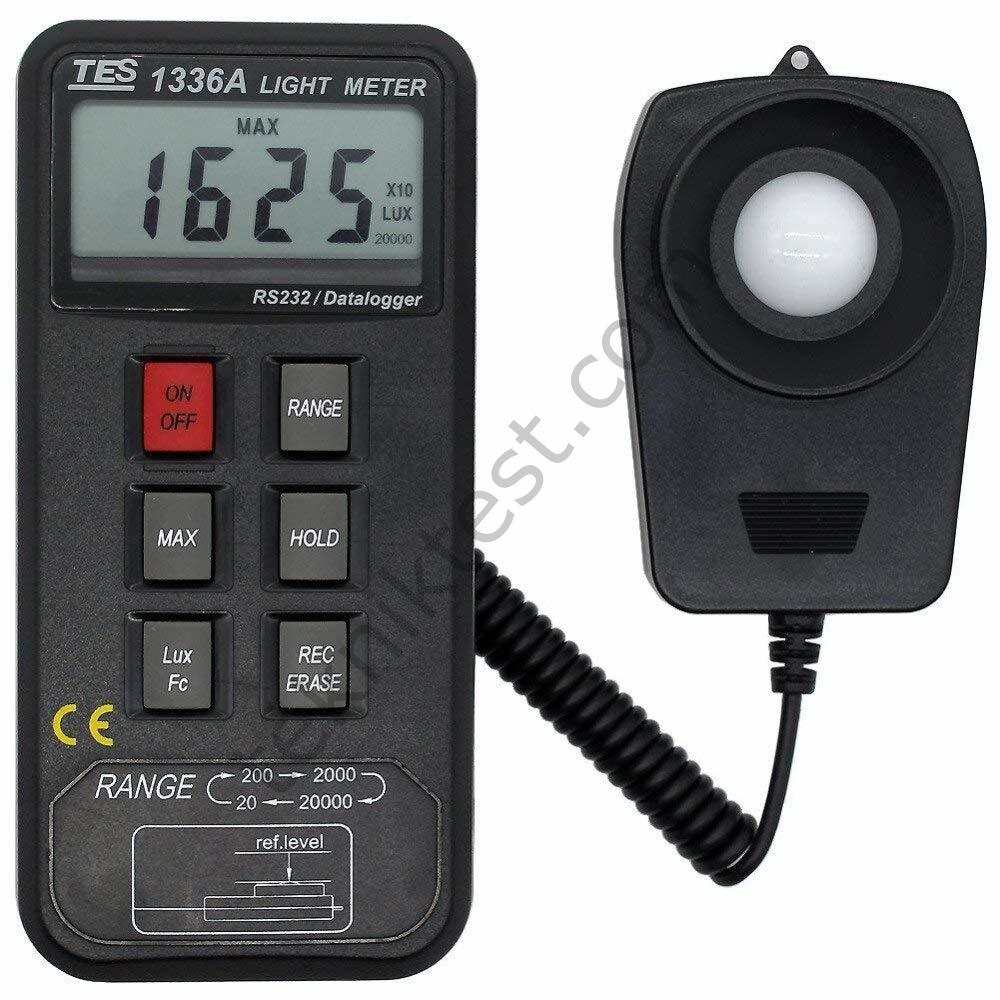

Tes 1336A Işık Ölçer
Ürüne Genel Bakış :
Işık şiddeti ölçümü (PC Yazılımı)
Fotoğraf sensörünün spektrumu C.I.E.
fotopik eğri V (λ)
16000 Kayıtlar Veri kayıt kapasitesi
Lux / Fc / MAX tutma / Veri tutma işlevi
USB arayüzü (yazılım dahil)
Ürünün Teknik Özellikleri :
Applicable standards |
JIS C1609-1993、CNS 5119-1998 AA |
||
|
Measuring range |
20/200/2000/20000 Lux , 20/200/2000/20000 Fc |
||
|
Luminous intensity (cd) |
Intensity= illuminance×(length)2 |
Length: |
feet (Fc) |
|
meter (Lux) |
|||
|
Resolution |
0.01 Lux |
||
|
Accuracy |
±3% rdg ±0.5% f.s (calibrated to standard incandescent lamp, 2856 K) |
||
|
CIE photopic f ’1 |
≦6% |
||
|
Overrang display |
OL |
||
|
Record (Data logging) |
16000 Point Data logger |
||
|
Sensor |
Silicon photo diode |
||
|
Sensor lead length |
150cm (approx) |
||
|
Sensor probe |
87.5(L) x 60(W) x 29(H) mm |
||
|
Main instrument Dimensions and weight |
146(L) x 70(W) x 39(H) mm/300g (approx) |
||
|
Power source |
One 9V battery |
||
|
Battery life |
50hrs (approx) |
||
|
Operating Storage Condition |
0℃ ~ 40℃ (32℉~104℉) below 80% RH -10℃ ~ 60℃ (14℉~140℉) below 70% RH |
||
|
Accessories |
Carry case, instruction manual, battery, RS-232 to USB cable, software for windows, screwdriver. |
||
